Fiber Laser Tube Cutting Machine
VTM-T and VTM-MT series. 1.5–6 kW, tube lengths to 9 m, round profiles up to 220 mm. Cuts round, square, rectangular, angle iron, channel, H-beam — with ±0.05 mm accuracy on every cut.
Product Line
Choose Your Series
Three tube laser series. CypTube CNC, HIWIN rails, and Raycus source — configured for different tube sizes and production requirements.
1 / 4MT Series

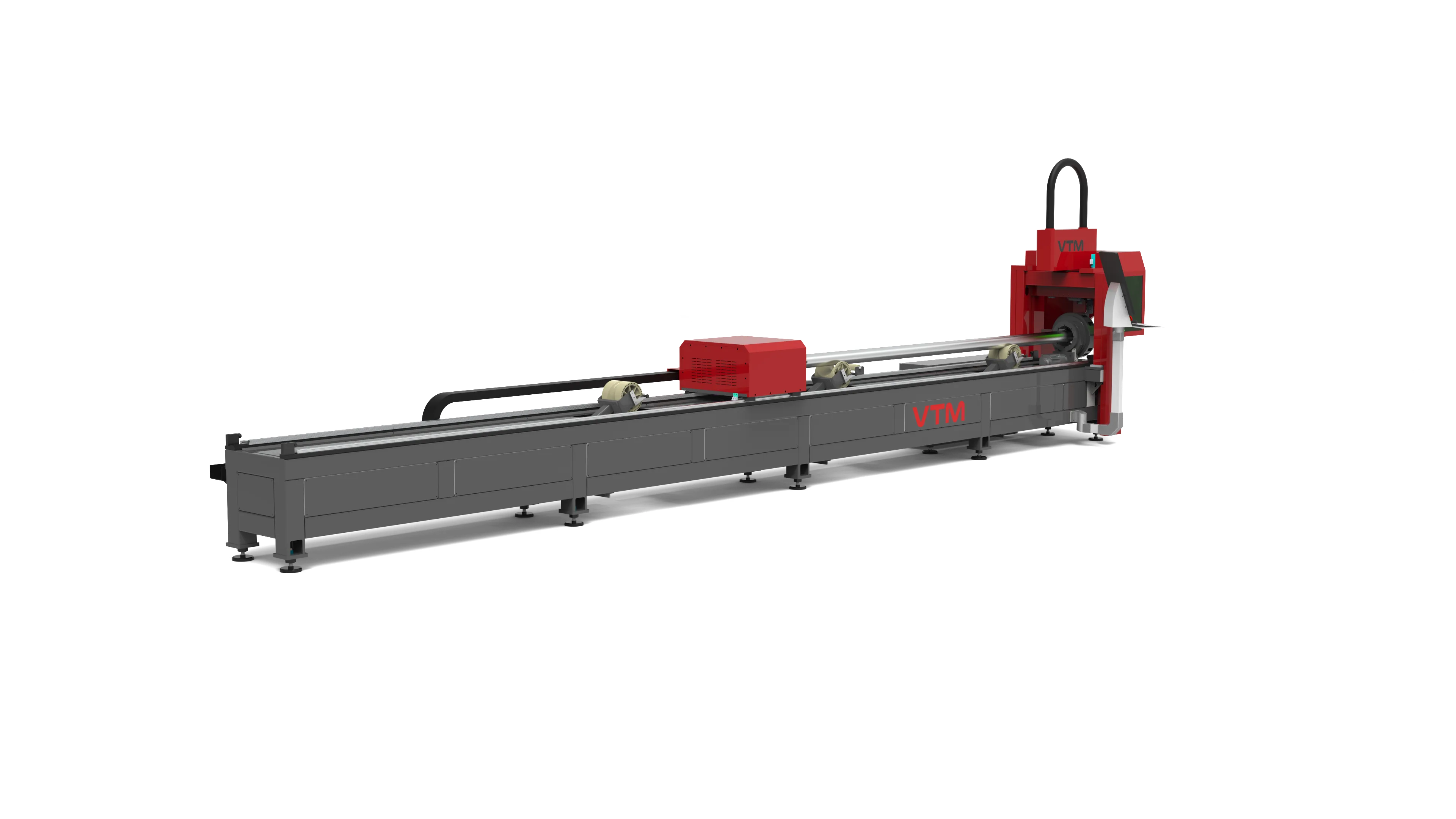

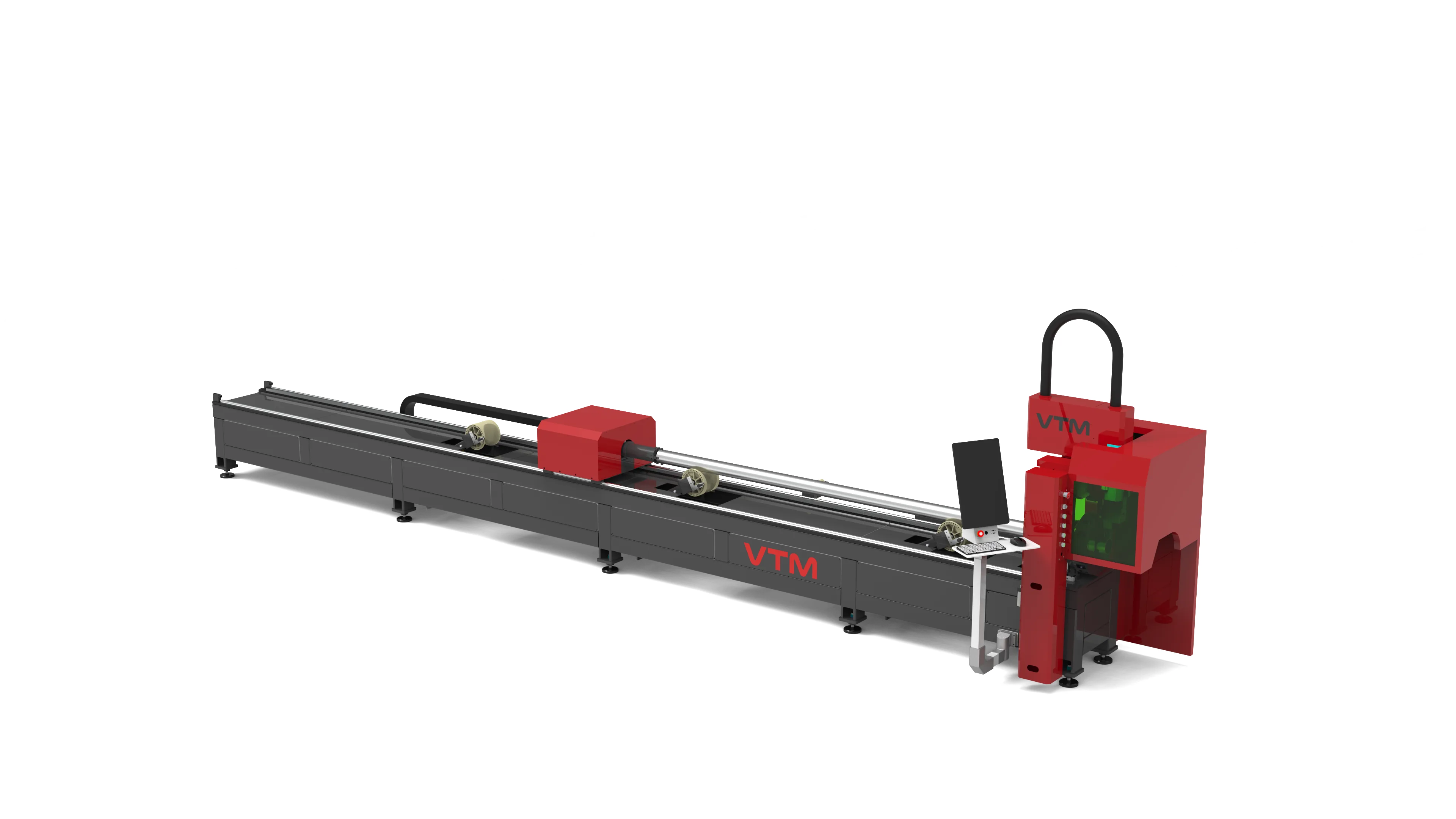

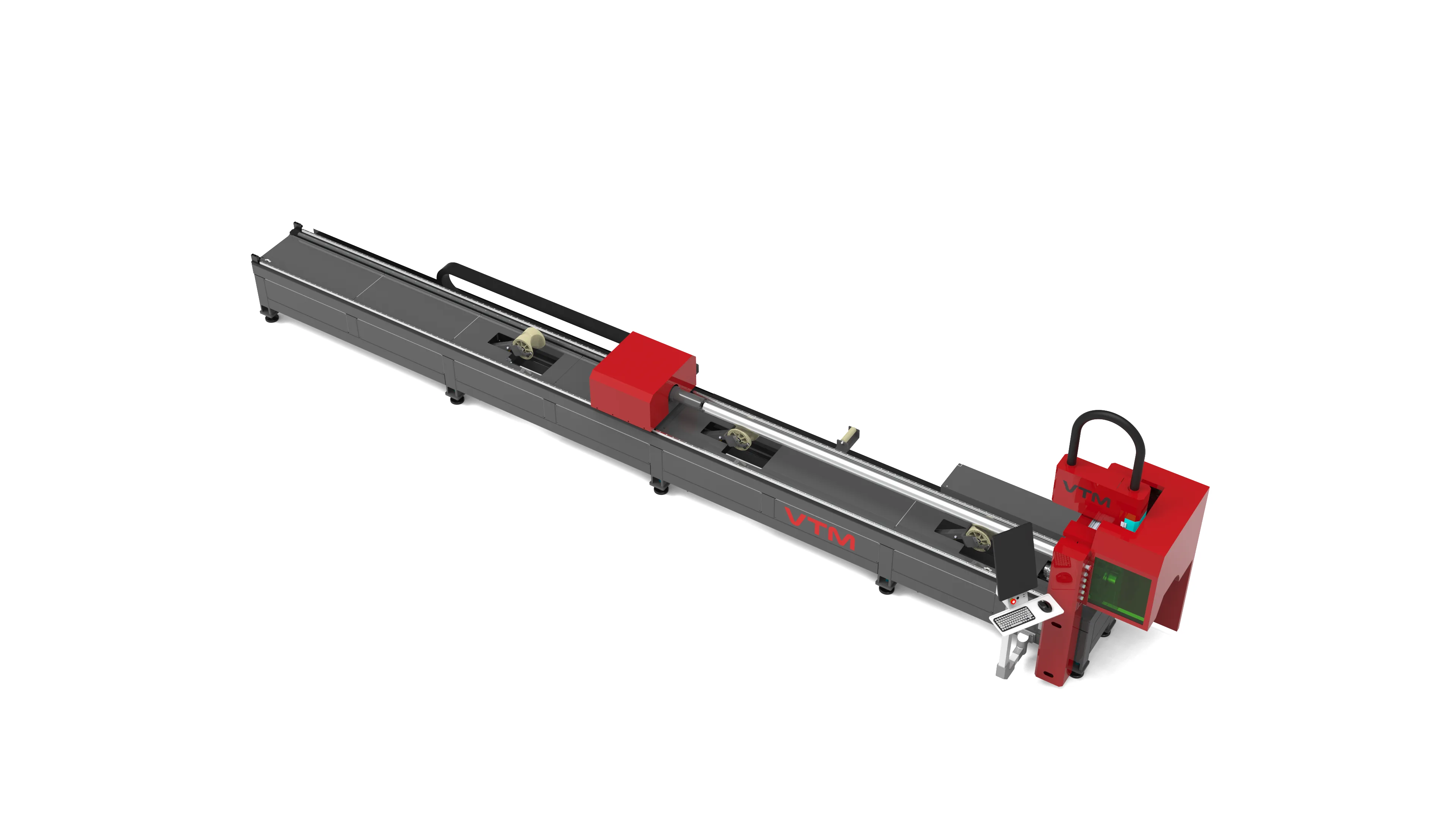

The MT series handles round and square tube profiles up to 160 mm diameter. Two models — VTM-6011MT and VTM-6016MT — cover light structural to medium-duty tube with 4-chuck pneumatic clamping and CypTube CNC control.
Best for
- Round & square tube up to 160 mm
- Structural profiles and angle iron
- High-accuracy miter and cope cuts
- Light to medium wall thickness
Technical Specifications
MT Series — Full Specs
VTM-6011MT
Φ10 mm
Min Diameter
Φ110 mm
Max Diameter
1500 W, 2000 W
Laser Power
1 G
Max Acceleration
±0.03 mm
Positioning Accuracy
80 r/min
Chuck Speed
380V 3PH 50/60Hz
Voltage
VTM-6016MT
Φ20 mm
Min Diameter
Φ160 mm
Max Diameter
1500 W, 2000 W
Laser Power
1 G
Max Acceleration
±0.03 mm
Positioning Accuracy
80 r/min
Chuck Speed
380V 3PH 50/60Hz
Voltage
Available Upgrades
See It Cut
In Action
Video embed — insert YouTube or Cloudflare Stream URL
Technology
Laser vs. Saw + Manual Layout
| Feature | Fiber Laser Tube | Saw + Drill + Layout |
|---|---|---|
| Miter cuts and compound angles | Programmed, automatic | Manual fixture, multiple setups |
| Fish-mouth / cope joints | Auto-generated from CAD import | Template + grinder, skilled labor |
| Slot, hole, notch in tube wall | Single operation | Drill press, separate step |
| Part-to-part consistency | ±0.05 mm, every part | Operator-dependent |
| Material waste | Minimal — nested programs optimize stock | Offcut per cut, difficult to optimize |
| Setup time on new part | Import DXF/STEP, run | New fixture or template required |
| Labor per part (structural run) | Low — machine runs unattended | High — operator at machine each piece |
Get Pricing
Request a Quote
Tell us about your shop and the work you're doing. We'll respond with pricing, lead time, and recommended configuration within one business day.
- No obligation
- Response within 1 business day
- Speak directly with a machine specialist
Continue Exploring
Related Machines
Questions
Frequently Asked
Round tube, square tube, rectangular tube, angle iron (L-section), C-channel, I-beam, H-beam, and custom profiles. The CypTube controller includes profile templates for all standard sections.
Yes. Import your 3D model (STEP or IGES) and CypTube auto-generates the cutting path for cope joints, fish-mouths, miter cuts, and tube-to-tube connection geometry. No manual layout or grinding required.
The tube laser cuts thin-wall tubing down to approximately 1 mm (0.04") wall. For HVAC ductwork and light structural, the 1.5 kW version handles thin-wall at high speed with clean edge quality.
The VTM-MT extended platform handles up to 9 m (approximately 30 ft) without mid-job repositioning. For standard 20-ft (6 m) structural stock, the VTM-T is the right fit.
No. The self-centering pneumatic chucks adapt to round, square, and rectangular profiles within their rated size range. Switching from round to square tube takes seconds — just load the next piece.
Yes — VTM also offers the VTM-ST Sheet & Tube Combo, which cuts both flat sheet and tube on a single machine. Ideal for shops that need both capabilities but can't justify the floor space or investment for two separate machines.
